SCM Formula S 640P Bandsaw, INCLUDES FREIGHT

SCM Formula S 640P Bandsaw, INCLUDES FREIGHT

  • SinglePhase48Hp
  • 3Phase90Hp

$ 85.80

$ 66.00

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpentries

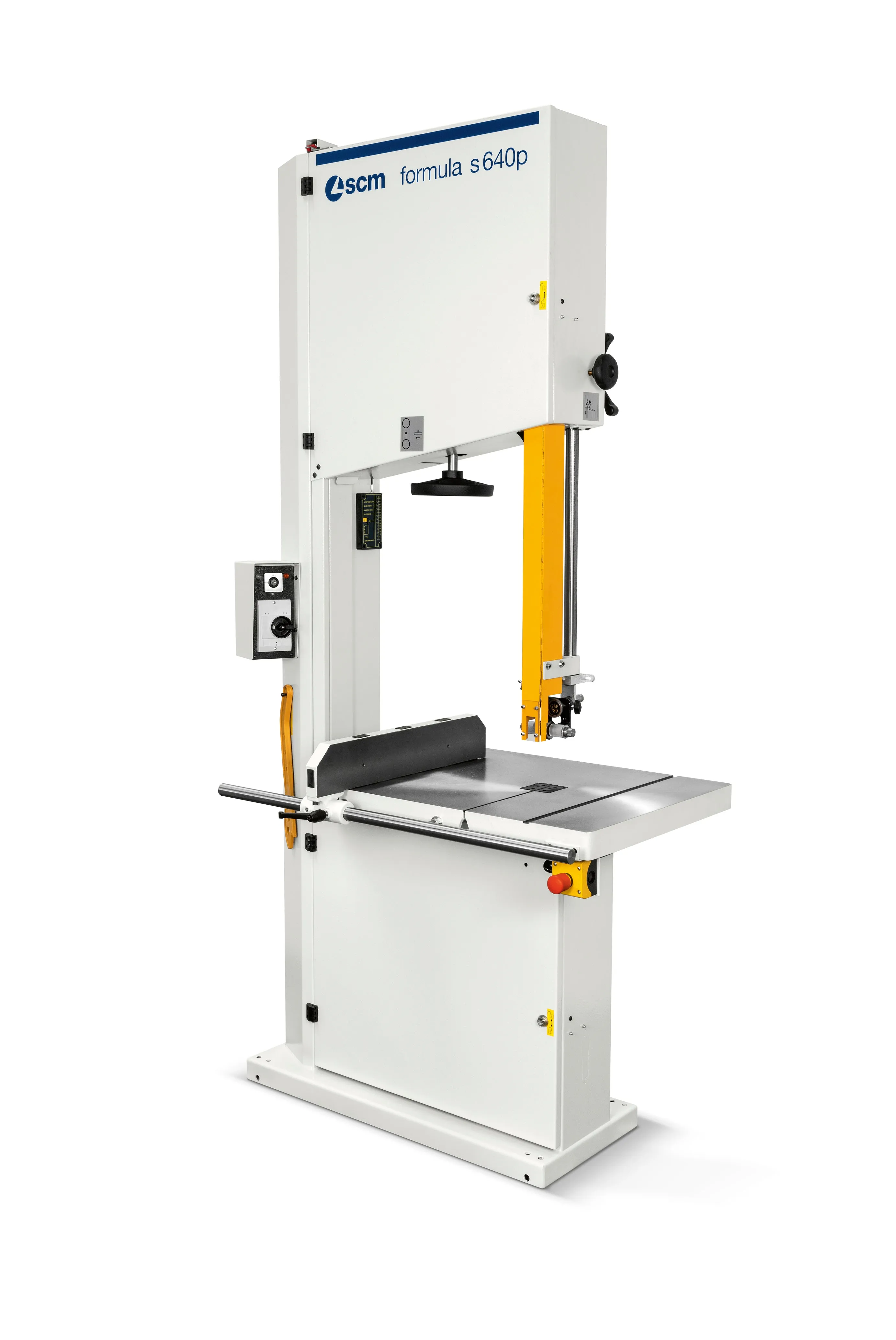

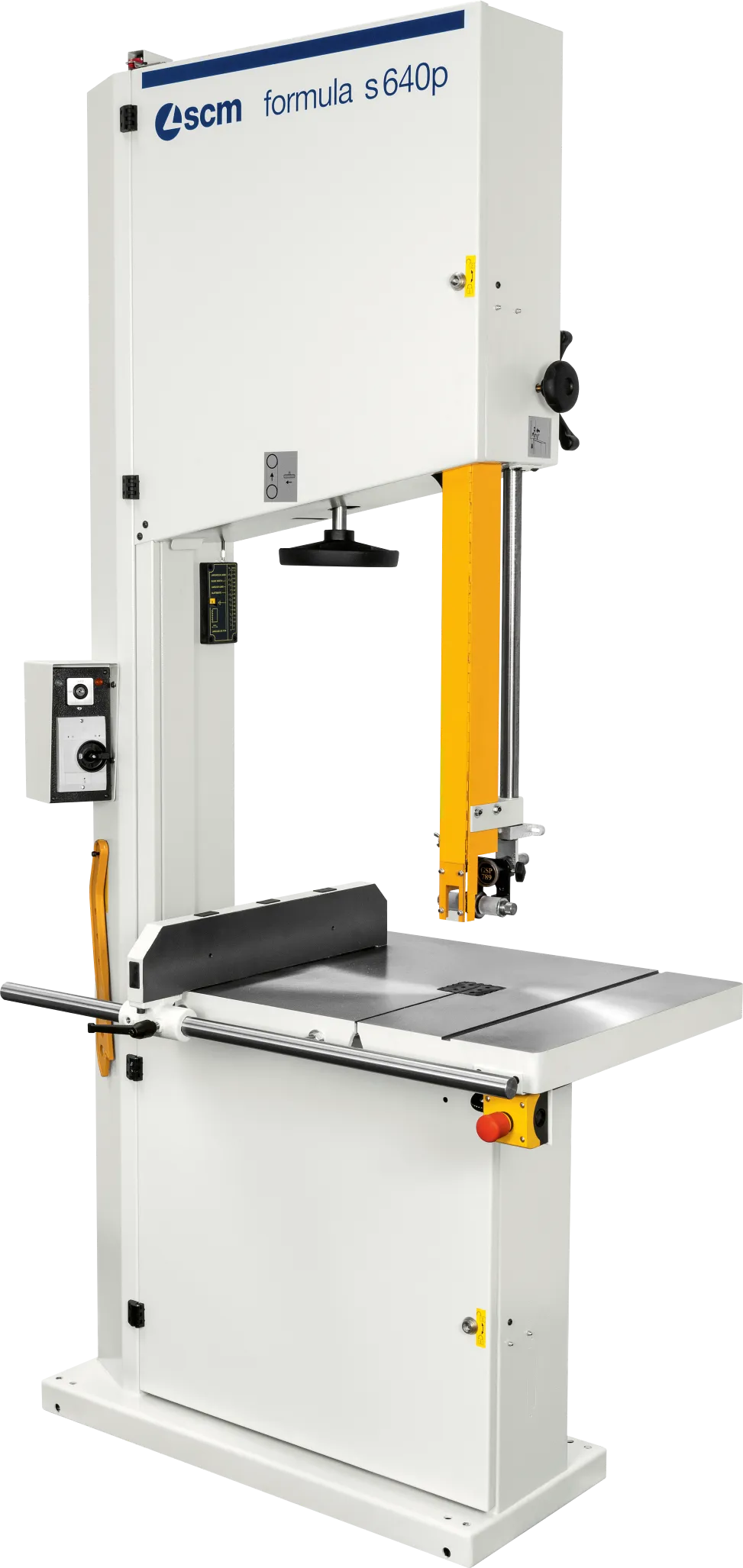

The S 640P is the beast of the Professional Series Bandsaws. This bandsaw comes in either single-phase or 3-phase depending on your electrical specs and production needs. With single-phase power, you get a hardy 4.8hp bandsaw. If you are higher production or do primarily resaw, you can get yourself the 3-phase version with a whopping 9hp! With such robust power you can easily resaw 24” logs while still having the ability to do fine intricate scrollwork. Whatever your project needs are, the S660p delivers!



Advantages

Solidity and sturdiness

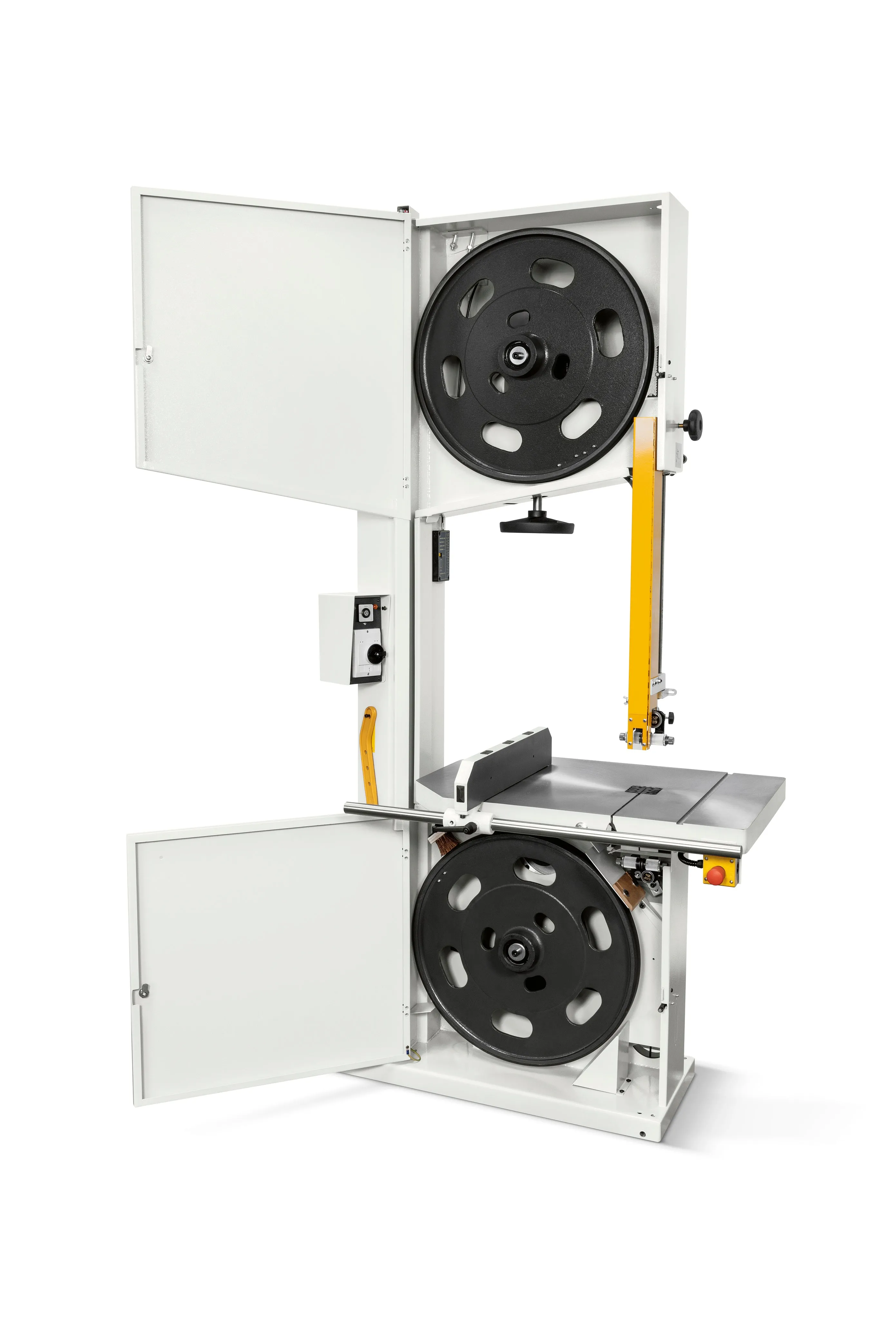

Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.

Safety first
Total safety machining with telescopic protections with rackwork to the blade.

Perfect results

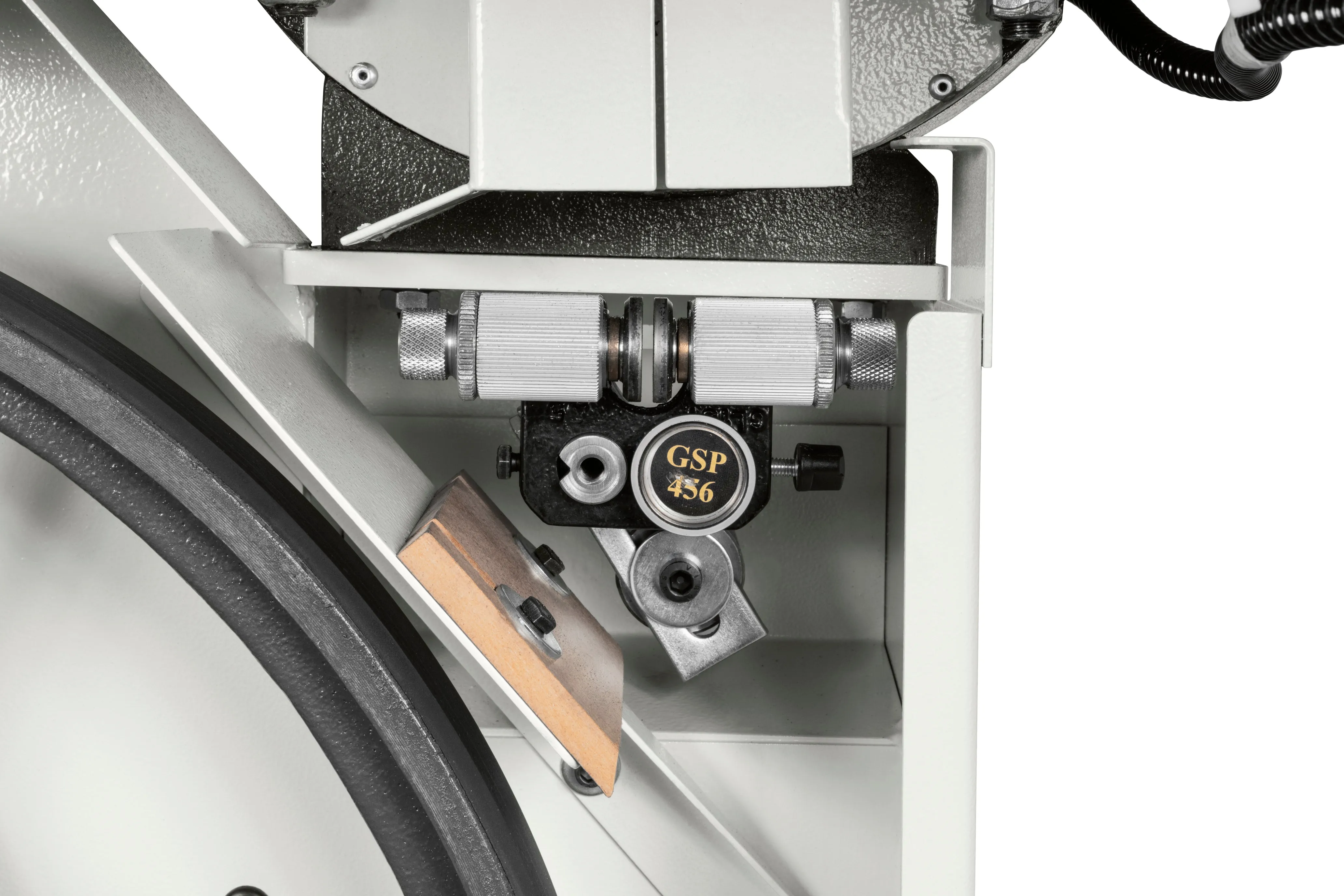

A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

Technical data

SCM S 640P Bandsaw Blade Length: 204"

Minimum/Maximum Blade Width: 1/4" - 1-1/2"


Technical features   S 440P S 540P S 640P S 740P S 840P S 940P
Worktable dimensions mm 420 x 578 520 x 720 600 x 885 710 x 1000 800 x 1160 800 x 1250
Cast iron saw wheels diam. mm 440 540 640 740 840 940
Saw wheels width mm 33 38 38 40 45 54
Max. cutting height (inches) mm 440 (18") 500 (20") 600 (24”) 450 (18”) 540 (21”) 560 (22”)
Max. cutting width mm 425 520 620 720 820 910
Worktable tilting (CE)   0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°)
Min./max. blade dimensions mm 6/30 6/35 8/35 10/40 10/45 12/50
Standard three-phase motor
S1 400V 50Hz (60 Hz)
  1,5kW 2hp 50Hz
(1,8kW 2,4hp)
2,2kW 3hp 50Hz
(2,7kW 3,6hp)
2,2kW 3hp
(2,7kW 3,6hp)
3kW 4hp
(3,6kW 4,8hp)
4kW 5,5hp
(4,8kW 6,6hp)
5,5kW 7,5hp
(6,6kW 9hp)
Standard three-phase motor
S1 220V 60Hz
  3,6kW 4,8hp 3,6kW 4,8hp 3,6kW 4,8hp 5kW 6,6hp 6,7kW 9hp 6,7kW 9hp
Standard single-phase motor
S1 220V 60Hz
  3,6kW 4,8hp 3,6kW 4,8hp 3,6kW 4,8hp - - -
Exhaust outlet diameter mm N° 2 x 120 N° 2 x 120 N. 2 x 120 N. 2 x 120 N. 2 x 140 N. 2 x 140
